Bag Breaker

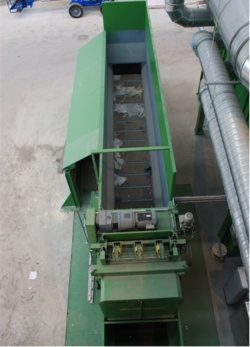

Bag Breaker Machine. Image: OKAY Engineering

Bag Breakers are automated opening machines that operate at the beginning of MRFs and release the contents contained in bagged waste into the downstream plant at the required throughput rate. Bagged material is fed into a Bag Breaker at an evenly metered flow rate and is split open by blades on counter-rotating drums without damaging the waste. Bags of all sizes can be split, and they are left in one or two pieces for easy removal via a series of crowder arms. Conveyors both load the bags and then unload the split material for further processing. The hooper box can be built to match the throughput of the MRF and so the Bag Breaker can also perform storage and metering functions to help free up time for the grab/shovel loader downstream.

Applications

• MRFs
• PRFs
• Material flow control
• Bag opening
• Feeding

Benefits

Higher processing capacity than manual sorting Low maintenance and operational costs Easy to retrofit into existing facilities Does not damage bagged contents Empty bags are torn to large pieces rather than shredded for easy removal Eliminates the hazard of manual bag opening

Bag Breaker Blades. Image: OKAY Engineering. Bag Breaker Blades

The Process

Bag Breaker Diagram. All Rights Reserved.

1. Bagged waste is fed into the Bag Breaker via a conveyor at an evenly metered flow rate
2. The blades on large counter-rotating drums cut open the bags without damaging the contents
3. The waste falls from the bottom of the machine
4. A belt conveyor transports the recyclable material away from the machine for further processing downstream
