3Rs Walsall

From Wikiwaste

An EfW facility based upon conventional combustion technology and which reached financial close and entered construction in December 2023. Walsall Energy Recovery Facility has a permit capacity of 478,300 tonnes and a forecast operational capacity of 436,000 tonnes per annum. The project is owned by Encyclis and was originally developed by BH Energy Gap as 3R Walsall.

Walsall Energy Recovery Facility
Under Construction
Site Location
Site Location

See Residual EfW → page for a larger UK Wide map.

Waste Licence AP3832WS
Operator Encyclis (Walsall) Limited
Region West Midlands
Operational Capacity 478ktpa
Is site R1? fal
When was R1 Granted?
What was the R1 value 0.00
Electrical Capacity 49.90MWe
Number of Lines 2
Number of Turbines 1
CHP No
Technology Approach EfW
Funding Type [[]]

Operators Annual Report


Input Data

Year HH C&I Clin RDF Total


Output Data

Year IBA IBA %ge of Tot IN APC APC %ge of Tot IN

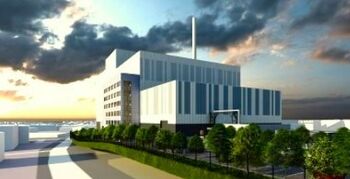

Image of Walsall EFW
Image of Walsall EFW


Summary

An EfW facility based upon conventional combustion technology and which reached financial close and entered construction in December 2023. Walsall Energy Recovery Facility has a permit capacity of 478,300 tonnes and a forecast operational capacity of 436,000 tonnes per annum. The project is owned by Encyclis and was originally developed by BH Energy Gap as 3R Walsall.

Technology

The plant technology will comprise 2 lines of a standard moving grate technology, producing super-heated steam and 49MWe[1] anbd is designed for future CHP capability.

Construction

The plant is to be delivered under a EPC turnkey arrangement with Hitachi Zosen Inova (HZI) and initial groundworks were delivered by McAuliffe - which were funded with a loan from the West Midlands Combined Authority ahead of financial close.

Waste Input

The plant is intended to run on residual Household Waste and Commercial Waste provided by a range of local and regional waste companies.

References
