East Midlands Energy Re-Generation Centre (EMERGE)

From Wikiwaste

An EfW facility based upon conventional combustion technology, located at the site of the old coal fired power station in Ratcliffe-on-Soar. The EMERGE EfW Plant is forecast to have a capacity of c.500,000 tonnes per annum generating 49.9MW with around 43.4MW of electricity exported.


East Midlands Energy Re-Generation Centre (EMERGE)
Planning
Site Location
Site Location

See Residual EfW → page for a larger UK Wide map.

Waste Licence NP3608BQ
Operator Uniper
Region East Midlands
Operational Capacity 500ktpa
Is site R1? fal
When was R1 Granted?
What was the R1 value 0.76
Electrical Capacity 49.90MWe
Number of Lines 0
Number of Turbines 0
CHP
Technology Approach EfW
Funding Type [[]]

Operators Annual Report


Input Data

Year HH C&I Clin RDF Total


Output Data

Year IBA IBA %ge of Tot IN APC APC %ge of Tot IN

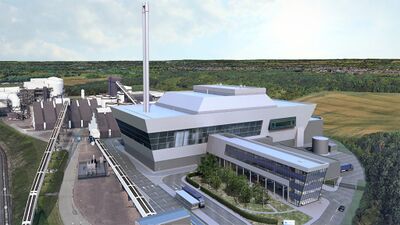

Computer Generated image of EMERGE EfW, all rights reserved
Computer Generated image of EMERGE EfW, all rights reserved


Summary

An EfW facility based upon conventional combustion technology, located at the site of the old coal fired power station in Ratcliffe-on-Soar. The EMERGE EfW Plant is forecast to have a capacity of c.500,000 tonnes per annum generating 49.9MW with around 43.4MW of electricity exported. The site has been developed by Uniper with planning consent granted in July 2021[1] and the Environmental Permit consultation ran between January and February 2022[2] and was issued in early March.

The Uniper website suggests construction would commence 2023, with full commercial operation in early 2026[3].

Technology

The moving-grate combustion technology is not defined as yet in the public domain or in the Environmental Permit application. The design set out in the Environmental Permit draft decision notice is based upon 7,884 hours per year of operation at a nominal 33 tonnes per line (equating to 2 lines) with a R1 rating of 0.76 (classifying it as Recovery facility).

Construction

The EPC and Operational and Management arrangements are not presently in the public domain.

Waste Input

The facility Environmental Permit maximum tonnage is 524,550 tonnes per annum, with the planning document suggesting a target tonnage of 472,100 tonnes per annum at the target NCV. It is anticipated to accept residual waste as feedstock, RDF and potential residues from treatment processes including AD and MBT.
