Ferrybridge Multifuel 1 (FM1)
An EfW facility based upon conventional combustion technology and considered an ERF based on its R1 status. Ferrybridge FM1 has permitted operational capacity of 675,000 tonnes per annum, and is owned and operated by Multifuel Energy Ltd. Delivery of waste is primarily by road, and the facility processes primarily RDF but is able to process a range of other Waste Derived Fuel, hence its 'Multifuel' name[1].
| Ferrybridge Multifuel 1 (FM1) Operational | |

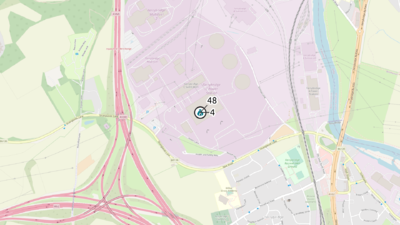

 See Residual EfW → page for a larger UK Wide map. | |
| Waste Licence | SP3239FU |
| Operator | Enfinium Ferrybridge 1 Ltd |
| Region | Yorkshire and the Humber |
| Operational Capacity | 725ktpa |
| Is site R1? | fal |
| When was R1 Granted? | 2017-05-07 |
| What was the R1 value | 0.80 |
| Electrical Capacity | 73.00MWe |
| Number of Lines | 2 |
| Number of Turbines | 1 |
| CHP | No |
| Technology Approach | EfW |
| Funding Type | PPP |
Operators Annual Report
Input Data
| Year | HH | C&I | Clin | RDF | Total |
|---|---|---|---|---|---|
| 2016 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| 2017 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
| 2018 | 0.00 | 0.00 | 0.00 | 647085.00 | 647085.00 |
| 2019 | 666942.00 | 0.00 | 0.00 | 0.00 | 666942.00 |
| 2020 | 0.00 | 0.00 | 0.00 | 599367.00 | 599367.00 |
| 2021 | 0.00 | 0.00 | 0.00 | 656414.00 | 656414.00 |
| 2022 | 0.00 | 619106.00 | 0.00 | 0.00 | 619106.00 |
| 2023 | 0.00 | 0.00 | 0.00 | 649546.00 | 649546.00 |
Output Data
| Year | IBA | IBA %ge of Tot IN | APC | APC %ge of Tot IN |
|---|---|---|---|---|
| 2016 | 119760.00 | 0.00% | 22824.00 | 0.00% |
| 2017 | 125051.00 | 0.00% | 25822.00 | 0.00% |
| 2018 | 128112.00 | 19.80% | 27070.00 | 4.18% |
| 2019 | 129216.00 | 19.37% | 27342.00 | 4.10% |
| 2020 | 113506.00 | 18.94% | 24996.00 | 4.17% |
| 2021 | 127477.00 | 19.42% | 26699.00 | 4.07% |
| 2022 | 119636.00 | 19.32% | 26307.00 | 4.25% |
| 2023 | 124770.00 | 19.21% | 24629.00 | 3.79% |
Summary
An EfW facility based upon conventional combustion technology and considered an ERF based on its R1 status. Ferrybridge FM1 has permitted operational capacity of 675,000 tonnes per annum, and is owned and operated by Multifuel Energy Ltd. Delivery of waste is primarily by road, and the facility processes primarily RDF but is able to process a range of other Waste Derived Fuel, hence its 'Multifuel' name[2].
History
The Ferrybridge FM1 facility was built to service primarily residual Household Waste, Commercial Waste, RDF, SRF and Wood Waste giving it flexibility in the market. The core tonnage for the plant includes Cumbria via their contract with Renewi for RDF from their MBT facilities which supply 200,000 tonnes per year of the core tonnage under a PPP. It is located on the old Ferrybridge 'C' coal fire power station near Knottingley and has Ferrybridge Multifuel 2 (FM2) located adjacent to it, on the same SSE site. The combined FM1 and FM2 are capable of processing 1,350,000 tonnes per annum, making it the biggest Residual Waste EFW site in the UK.
The project was originally a 50:50 joint venture between Wheelabrator and SSE, but in late 2020 SSE sold their share to the European Diversified Infrastructure Fund III, a fund managed by First Sentier Investors (FSI) (formally known as First State Investments) headquartered in Australia. In December 2020 Wheelabrator announced the sale of their UK energy from waste division to the same fund[3] for completion in early 2021.
Plant
Built by Hitachi Zosen Inova under a Design & Build EPC-turnkey contract and was delivered in August 2015 at a reported[4] GBP £300m capital cost. The plant comprises 2 lines of 31.3 tonnes/hour (maximum 42.2 tonnes/hour) design capacity capable of treating 513,000 tonnes per annum via standard combustion technology, air cooled, Hitachi Zosen Inova Grate AR123-120120, generating super-heated steam, and is configured to run on residual Household Waste, Commercial Waste, RDF, SRF and Wood Waste with a CV of between 8.5 and 16.5MJ/kg to deliver 67.8MWe of power [5]. Operating at the higher tonnes/ hour figure would result in a capacity close to 690,000 tonnes per annum, but this would require a low CV.
Local Authority Users
Tonnage from Cumbria County Council is not listed below as the Local Authority do not specify the end destination after the MBT processing contract with Renewi under their PPP. In 2018/19 WasteDataFlow showed ca. 60,000 tonnes that went to Energy from Waste 'multiple destinations', this is thought to be largely sent to FM1.
Local Authority Data
The table below lists those local authorities who have recorded their tonnage on WasteDataFlow as sending their Waste to this site (either directly or via a transfer station) for the most recent financial year, data was updated on 2023-04-26. The tonnage received cannot be directly compared with the stated historical tonnage received and recorded in the EA statistics as these are recorded on a calendar year basis (i.e. January 2018 to December 2018). The total Local Authority waste received by the plant in the period was: 503,809.63t
A 'zero return' or a below expected return, when compared to the EA Data below indicates that either:
- no local authority tonnage was recorded/no tonnage was sent to the site in the period (but has been listed as it may have previously received tonnage from a local authority) or
- a result of the plant being recently commissioned and actually having received no tonnage or
- a lower than expected tonnage maybe a result of a local authority splitting their tonnage over multiple sites, having less tonnage to send than might be anticipated or
- it may be a new plant being in 'ramp up' towards full capacity after construction or
- may be a result of plant shut down and subsequent re-start in a year or
- the local authority may not have correctly entered the site's details on WasteDataFlow
Waste Tonnage, By Origin
The table shows a list of the Waste for the Permit SP3239FU, that has arrived into sites as reported to the Regulator and then publicised in their reported statistics. The Data was last updated on October 2024. The total reported tonnage arriving at the site was: 649,546.16t.
Where this tonnage exceeds that reported in year of the corresponding annual report, this may be due to the following reasons:
- Tonnage may have been received but not incinerated, i.e. the material is held pending incineration (the operator return to the EA reports as received whereas the annual report focuses on when the waste is incinerated.)
- Material may have been received into the site but treated in some other way than incineration.
- Material may have been received on the but transferred out of site for disposal/treatment at another site rather than incineration on the site.
| EWC Code | Origin of Waste | Tonnes In |
|---|---|---|
| 19 12 10 | East Riding of Yorkshire | 53653.06 |
| 19 12 10 | Derbyshire | 708.02 |
| 19 12 10 | Knowsley | 8653.92 |
| 19 12 10 | Preston | 4030.50 |
| 19 12 10 | Leicester | 33461.86 |
| 19 12 10 | North West Leicestershire | 634.80 |
| 19 12 10 | Nottingham | 11723.56 |
| 19 12 10 | Kirklees | 22452.90 |
| 19 12 10 | Birmingham | 7367.12 |
| 19 12 10 | Leeds | 28370.30 |
| 19 12 10 | Sandwell | 1368.50 |
| 19 12 10 | Kingston upon Hull, City of | 18661.62 |
| 19 12 10 | Havering | 1104.14 |
| 19 12 10 | Telford and Wrekin | 4237.30 |
| 19 12 10 | Halton | 2706.16 |
| 19 12 10 | County Durham | 553.00 |
| 19 12 10 | North Yorkshire | 3606.86 |
| 19 12 10 | Rotherham | 124489.12 |
| 19 12 10 | Wrexham | 21345.72 |
| 19 12 10 | York | 18174.56 |
| 19 12 10 | North Tyneside | 18414.84 |
| 19 12 10 | Cheshire West and Chester | 17518.12 |
| 19 12 10 | Middlesbrough | 6256.80 |
| 19 12 10 | Sheffield | 14626.14 |
| 19 12 10 | Bury | 4833.92 |
| 19 12 10 | Salford | 127.42 |
| 19 12 10 | Bolton | 1150.22 |
| 19 12 10 | Calderdale | 813.92 |
| 19 12 10 | Wolverhampton | 1483.50 |
| 19 12 10 | Bristol, City of | 76.40 |
| 19 12 10 | Trafford | 37273.46 |
| 19 12 10 | North Lincolnshire | 23933.40 |
| 19 12 10 | Blackburn with Darwen | 5427.24 |
| 19 12 10 | Ashfield | 177.94 |
| 19 12 10 | Newcastle upon Tyne | 1915.10 |
| 19 12 10 | Wakefield | 62849.38 |
| 19 12 10 | Cumbria | 1236.54 |
| 19 12 10 | North West | 17586.24 |
| 19 12 10 | Hartlepool | 1194.14 |
| 19 12 10 | Wigan | 58841.64 |
| 19 12 12 | Wakefield | 52.02 |
| 19 12 10 | Southwark | 488.50 |
| 19 12 10 | Newham | 5966.26 |
