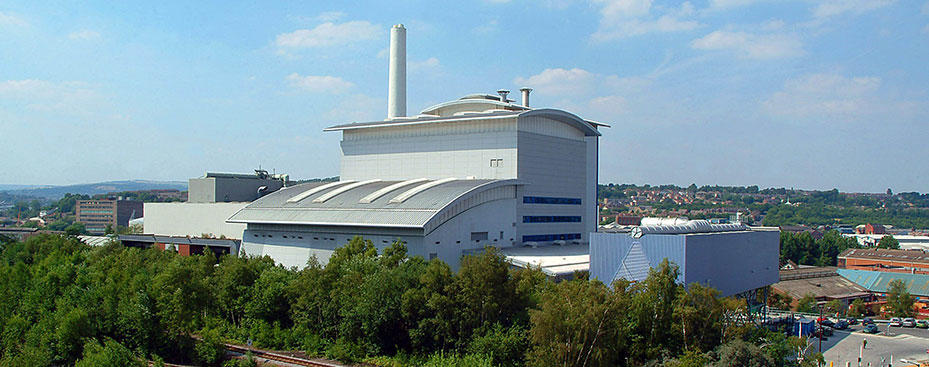

Sheffield ERF
An EfW facility based upon conventional combustion technology and considered an ERF based on its R1 status. Sheffield ERF has a permitted capacity of 245,000 tonnes per year and is operated by Veolia.
The waste feedstock is delivered by road and is primarily residual waste arising from local households and businesses[1].
Site Details
| Operator | Veolia ES Sheffield Ltd |
|---|---|
| Site | Sheffield ERF |
| Size | Medium |
| Permit No | BM4082IY |
| Plated Capacity | 245 |
| Status | Operational |
Plant Description
Construction was finished and operations began in 2006[3].
The combustion system is a Martin GmbH Reciprocating Grate with 5 rows and 13 steps with a single line, and the plant utilises a CNIM 4 Pass Vertical Boiler with Radiant Superheaters.
The average Net Calorific Value (NCV) of the feedstock is 9.210 kJ/kg[5].
The plant is a Combined Heat and Power (CHP) plant, exporting up to 21 MW electricity to the grid after the plants own power needs are supplied for, and producing up to 45 MW of heat fed into the District Energy Network[1]
History
The facility was built as part of a 35-year integrated waste management contract PPP worth £1.3 billion between Veolia and Sheffield City Council spanning from 2001 to 2036[3].
However, in January 2017, Councillors in Sheffield voted to prematurely terminate and re-tender this contract from April 2018, including the operations of Sheffield ERF[4]. Despite this, Veolia continues to operate this facility.
In December 2020, Veolia announced plans to alter the Environmental Permit of the site which now allows the plant to accept a maximum of 10,000 tonnes a year of 'orange bagged' healthcare waste[2].
