Wheelie Bin
The Wheelie Bin has been increasingly used in the UK for Household Waste and Commercial and Industrial Waste since the late 1980s, replacing metal cylindrical bins at the household and metal wheeled cylindrical bins at businesses (otherwise known as a Paladin).
The wheels allow for the ease of movement to and from the waste collection lorry and around the premises where the bin is based. Most whellie bins are constructed from HDPE plastic, with the larger bins also available in metal.
Wheelie bins can also be referred to by their size (i.e. "an 1100").
Background
The bins are generally lifted on the rear of a waste collection vehicle (known as a Refuse Collection Vehicle or RCV) for emptying into the compaction unit of the lorry - and the focus for the waste being collected is therefore waste that is generally light and compressible.
The compressible nature of the waste (such as Cardboard and/or Residual Waste) therefore allows the truck to gain efficiencies through volume to weight conversion, maximising the weight able to be transported on the waste collection vehicle.
Colours
The colour range is extensive, and whilst is broadly intended to link to the type of waste in the bin, this is by no means consistent across the UK. For Commercial and Industrial Waste collection services the bins are often colour matched to the branding of the business collecting the waste/providing the service. However, in broad terms the following applies:
- Grey/Black Bins - Residual Waste
- Blue Bins - DMR and Recyclable Waste
- Green/Brown Bins - Green and Garden Waste (but often also used as a standard, non-branded bin colour for commercial premises)
- Red Bins - Hazardous Waste (although Biffa branding has red bins for all waste types)
- Yellow Bins - Clinical Waste
Applications
The applications can be extensive, some examples include:
- The use of smaller bins for heavy food and glass waste that does not compress, and is collected in a vehicle without compaction.
- The use of bins as the 'transporting unit' and not using a Refuse Collection Vehicle or RCV i.e. Clinical Waste transported in the bins in a lorry/truck to the treatment centre where they are emptied, cleaned and returned
- Use of bins to collect material around a large site, enabling that material to then be bought to a central point for compaction/compression for subsequent transport in the bin that the waste has been compacted into

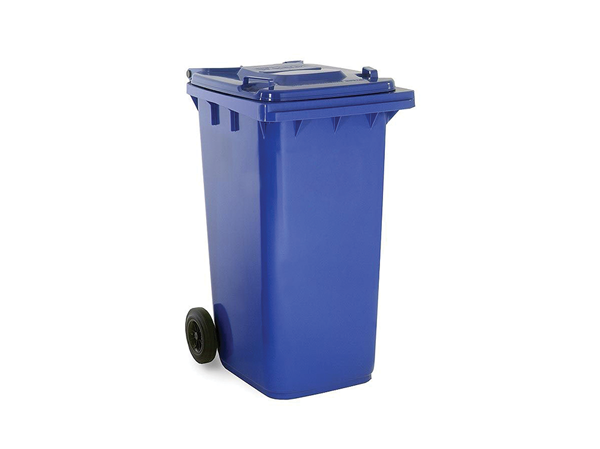

Smaller Bins
(120 to 180)
Two wheels, typically used in household collections and/or for small businesses or businesses with small waste streams

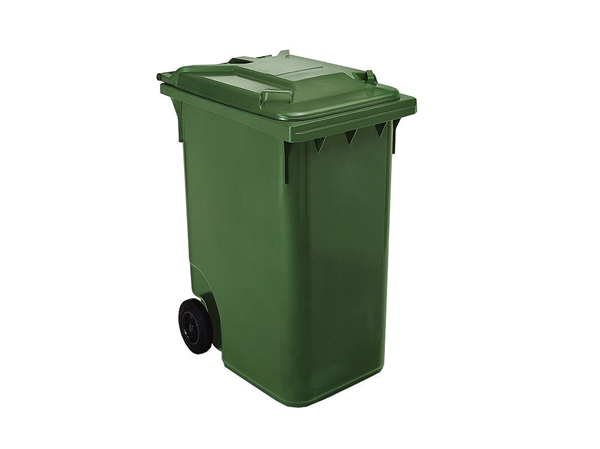

Medium Bins
(240 to 360)
Two wheels, typically used in larger households and flats waste collections and/or small businesses or businesses with small waste streams

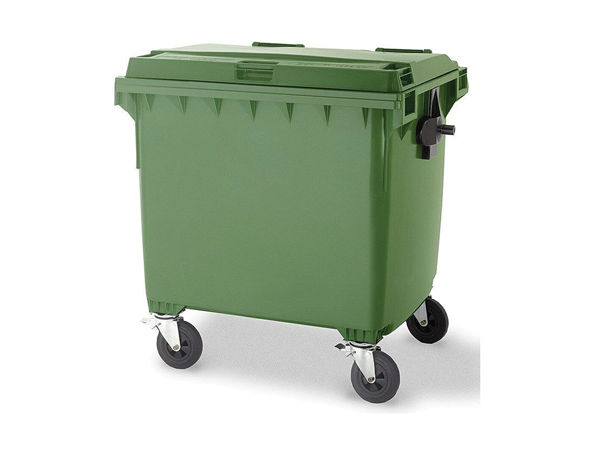

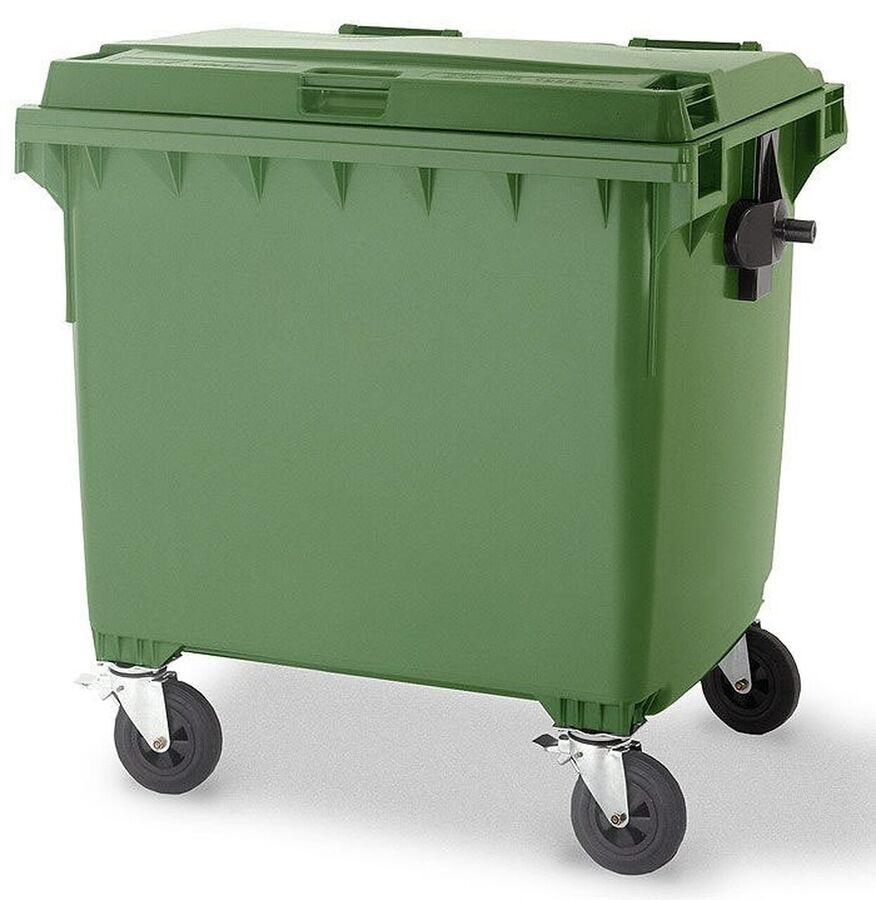

Standard 'Eurobins'
(660 to 1100)
Four wheels, typically used in flats/communal collections and/or small businesses
Bin Sizes
The most common sizes and types of Wheelie Bin are listed below, with the smaller 120, 180 and 240 litre bins being the most common applications for Household Waste. The pictures and measurements below come from WheelieBinWarehouse[1] and may vary slightly from supplier to supplier.
Weights and sack numbers are indicative and from WikiWaste consolidated information from a variety of sources.
The European Standard is captured by BSI as BS EN 840 and this sets out the standardisation that, at its core, ensures the same lifting device on the rear of the Refuse Collection Vehicle lorry (known as a comb) to be compatible with all bins complying to the standard. The standard also sets out, amongst other things, minimum measurements and health and safety requirements.
Size (litres) | No. of Black Bags | General Waste Weight (kg) | DMR Weight (kg) | Max Weight (kg) | Dimensions (approx.) |
|---|---|---|---|---|---|
120 | 1 to 3 | 48 | 0.9m(H) x 0.4m(L) x 0.5m(W) | ||
180 | 2 to 4 | 72 | 1.0m(H) x 0.5m(L) x 0.5m(W) | ||
240 | 3 to 5 | 20 | 15 | 96 | 1.0m(H) x 0.5m(L) x 0.6m(W) |
360 | 6 to 7 | 25 | 20 | 144 | 1.0m(H) x 0.6m(L) x 0.6m(W) |
660 | 10 to 12 | 45 | 30 | 270 | 1.2m(H) x 1.0m(L) x 0.6m(W) |
1100 | 12 to 15 | 70 | 35 | 440 | 1.3m(H) x 1.1m(L) x 0.9m(W) |
